Dell - Powervault 220S - 14 Hard Disk SCSI Storage Array

phone: Michael 604-346-2188
location: Surrey / Fleetwood

DELL- Powervault 220S - 14 Hard Disk SCSI Storage Array
Item Number: DEL-PV220S-BN-3Y

Condition:
Used / In Good Condition

Your's for only: $45.00 (no tax)


phone: Michael 604-346-2188

Dell PowerVault 220S is an expandable disk storage array capable of housing up to fourteen 3.5-inch disk drives in a single 3U rack enclosure.

Dell PowerVault 220S storage enclosures are the ideal choice for disk expansion on PowerEdge servers. The disk expansion enclosures can be attached to one server in a 14-drive joined-bus configuration; to one or two servers in a split-bus configuration where each bus controls seven drives; or, to two servers with 13 drives as part of a cluster configuration.



DESCRIPTION:
Dell PowerVault 220S systems are reliable, flexible, external SCSI expansion enclosures designed to support multiple Dell storage environments and RAID configurations. Each system offers maximized drive-spindle count, hot-plug hard drives, optional redundant power, redundant cooling, rackmount capability, systems management features, and a modular design for easy upgrades. Most major components, including hard drives and power supply/cooling modules are hot-pluggable and can be removed and replaced easily. The enclosure management module (EMM), split-bus module, and SCSI terminator card are "warm-pluggable." This means they can be removed or inserted while the power is on, but all I/O activity has ceased

  • Designed and tested to work seamlessly with most Dell PowerEdge servers
  • Delivers exceptional SCSI performance bandwidth when coupled with the latest Dell RAID controllers based on PCI Express
  • Houses up to fourteen 1" U320 SCSI disk drives (available at 10,000 and 15,000 RPM speeds)
  • Stores up 4200GB of raw capacity when 300GB U320 SCSI disk drives are used
  • Convenient hot-pluggable disk drives, cooling units and power supplies
  • Enhanced protection or performance offered through RAID 0, 1, 5, as well as RAID 1/0, 5/0 (with PERC 4e RAID controllers)
  • 3U form factor for rack dense environments and tower (PowerVault 221S) form factor for non-rack environments



SPECIFICATIONS:

Drives

SCSI hard drives

Support for up to fourteen 1-inch-by-3.5-inch LVD Ultra 160 and Ultra 320 hot-plug hard drives, at speeds of 10K or 15K rpm.

Bus

Configurations

support for any of the following:

  • one 14-device SCSI bus (joined-bus mode)
  • one clustered 13-device SCSI bus (cluster mode)
  • two independent 7-device SCSI buses (split-bus mode)



Back-Panel Connectors

SCSI connector

68-pin shielded P-type SCSI for connection to host



Backplane Board Connectors

Hard drives

fourteen 80-pin SCA-2 connectors

Power supply/cooling module

2 high-current connectors

Enclosure management modules (EMM)

210-pin connector

Split-bus module

180-pin connector



Enclosure Modules

EMM

2 warm-pluggable modules

Split-bus module

1 warm-pluggable module with an external slide switch to change between split-bus, joined-bus, and cluster modes

SCSI terminator card

1 warm-pluggable module to the terminate SCSI bus in non redundant EMM configurations



LED Indicators

Front panel

5 LED status indicators for power, fault, split bus, cluster mode, and over-temperature

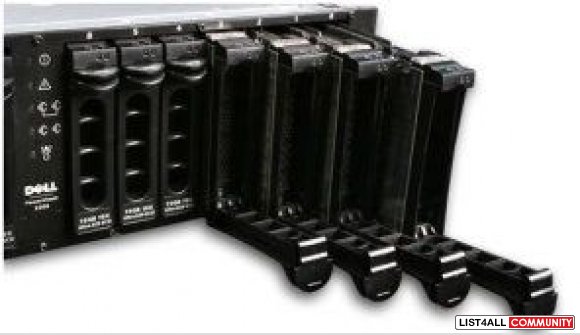

Hard-drive carrier

1 single-color activity LED and 1 two-color LED status indicator per drive

EMM

3 LED status indicators for power, fault, and active status

Split-bus module

1 LED indicator for power

Power supply and cooling module

3 LED status indicators for power supply status, power supply fault, and AC status and 2 for cooling module fault



Power Supplies

Wattage

600 W

Heat dissipation

200 W

Voltage

100-240 V rated (actual 85-264 V)

Frequency

50-60 Hz

Amperage

9.4 A at 100 V, 4.6 A at 200 V

Physical

Height

13.26 cm (5.22 inches)

Width

44.58 cm (17.55 inches)

Depth

50.8 cm (20 inches)

Weight

PowerVault 220S

32.4 kg (71.5 lb.) maximum redundant configuration with all hard drives installed

Environmental

Temperature:

Operating

Storage

10° to 35°C (50° to 95°F)

-40° to 65°C (-40° to 149°F)

Relative humidity

Operating

Storage

8% to 80% (non condensing)

8% to 95% (non condensing)

Altitude

Operating

-16 to 3048 m (-50 to 10,000 ft)

BTU per hour

2750

Available Hard-Drive Power (Per Slot)

Supported hard-drive power consumption

up to 1.3 A at +12V
up to 1.5 A at +5V


NOTES:

  • Item(s) are USED, Tested and in good condition.
  • Price is Firm - unless otherwise noted (with OBO, next to price).
  • I will update and/or remove this ad as item(s) are sold.
  • If you are viewing this ad...I still have the item(s) listed above.
  • I've tried to gather as much information on these items as I could. I otherwise know little to nothing about Computer Equipment, or all the potential uses for this storage array, so any questions you have should be directed to your local Dell dealer, or the manufacturer themselves.



PAYMENT POLICY:

  • Cash.
  • Interac™ - Email Money Transfer (for out of town buyers)
  • Paypal™ - For purchasers wishing to use a credit card.
  • If you are buying for your business, I can make up a receipt/invoice for your accounting, no problem. I realize this can sometimes be an issue.



DELIVERY POLICY:

  • Pick up (preferred)
  • Delivery within the lower mainland may be considered for a nominal fee.
  • Shipping may be considered within the USA & Canada . Shipping charges will be extra, and will include tracking, and insurance.
